The single stage self-driven pressure regulators series GMR are designed for use in
domestic applications and can also be mounted in individual domestic gas meters.
The single stage self-driven pressure regulators series GMR are designed for use in
domestic applications and can also be mounted in individual domestic gas meters.
The regulator can be employed with natural gas, manufactured gas, air propane
and other gases are not corrosive.
Their main features include compact size for space saving, high-quality materials,
high regulation accuracy, easy setting and maximum reliability of safety devices.
The regulators can also be installed both outdoors and indoor applications
with safely. The internal relief valve vent can be convoyed outside in case of installation
with closed rooms or for underground plants. Thanks to the concept of lever
mechanism, it is possible to achieve a high accuracy; high operating reliability. Simple
installation procedure.

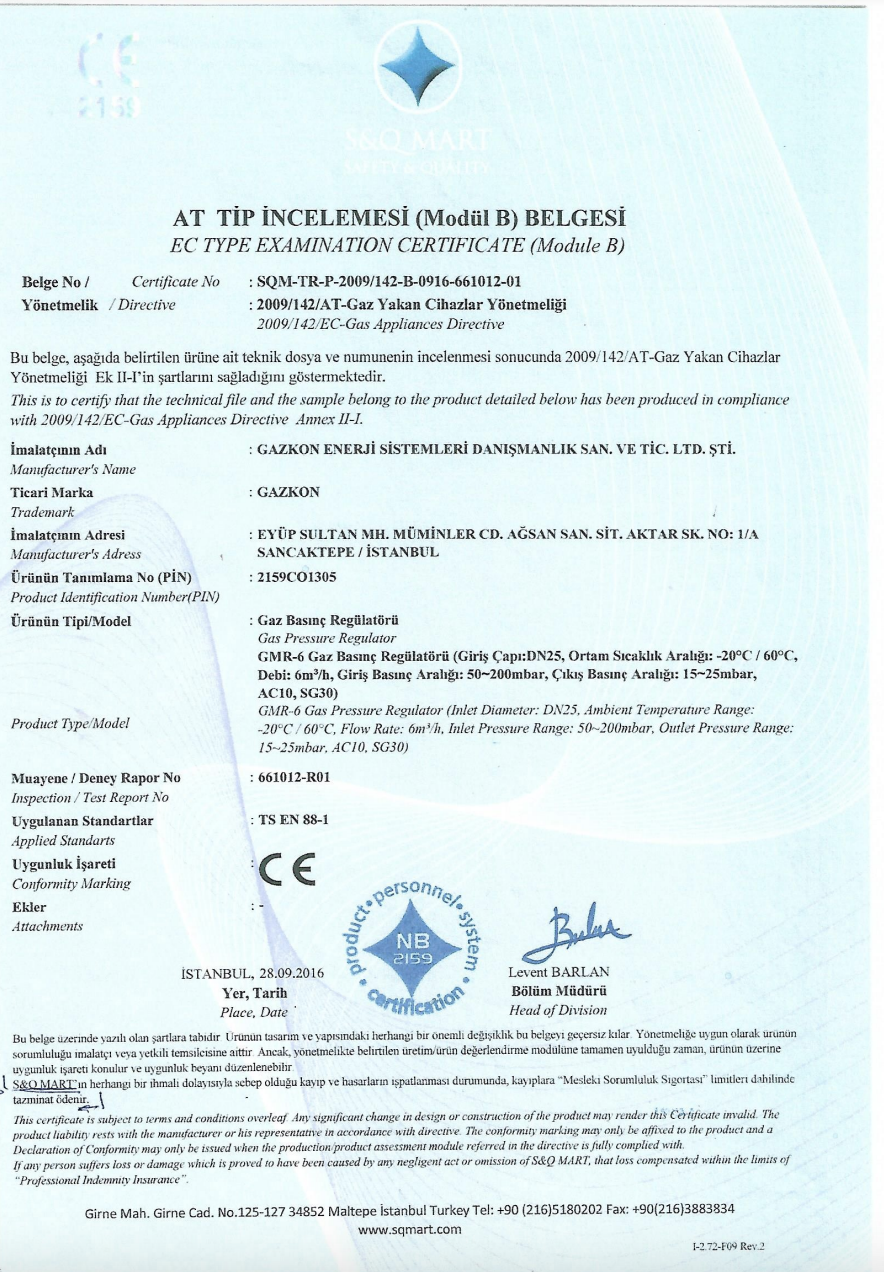

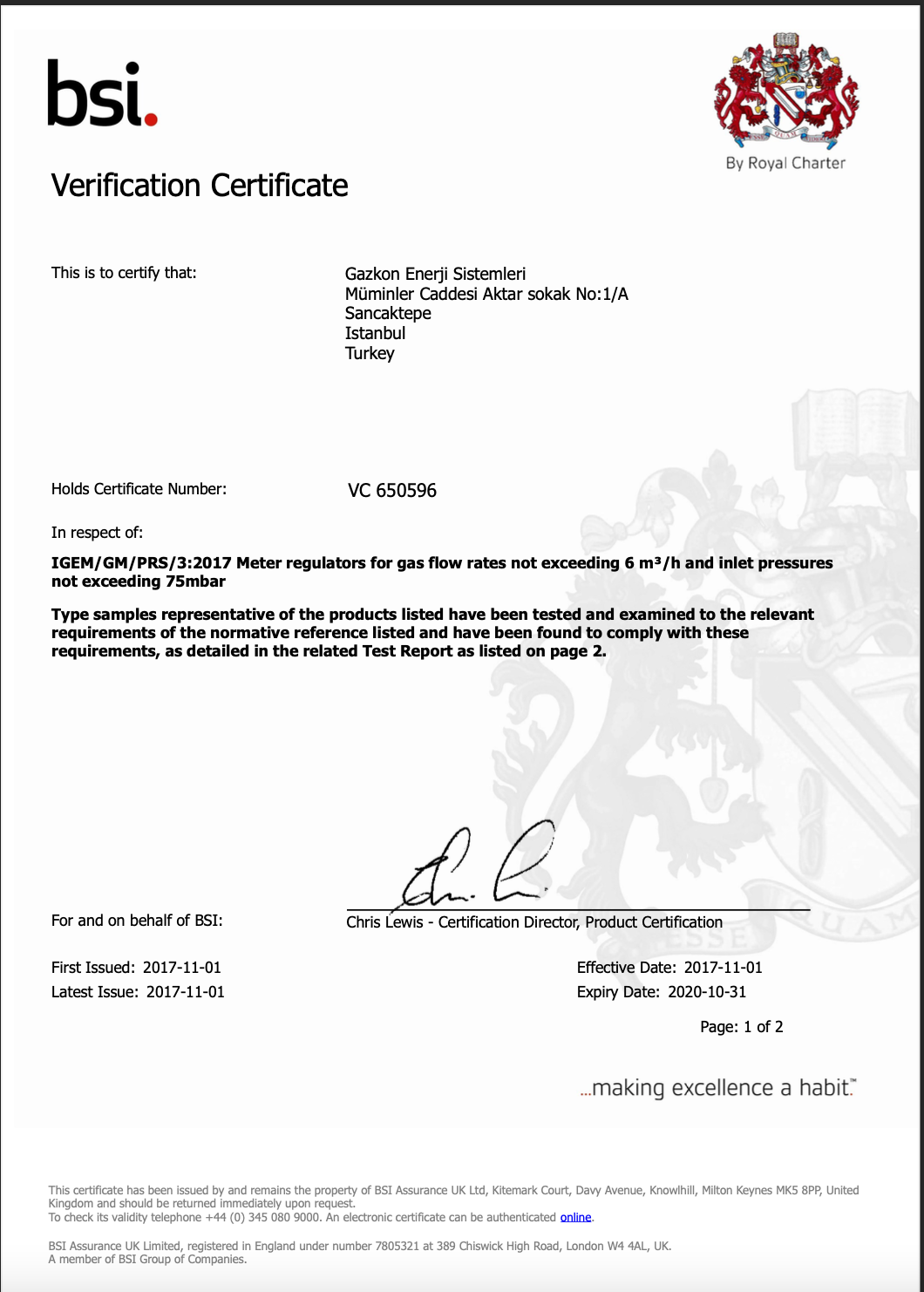

The regulator are manufactured according to EN 88-1 and TS/SP/PRS/3 of British Gas.

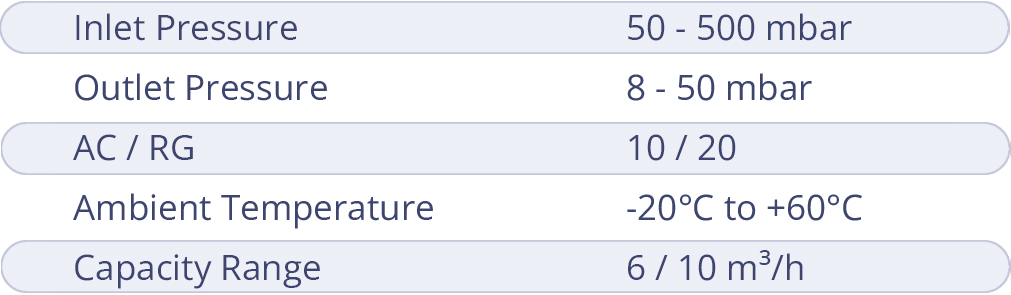

The regulator includes a diaphragm, a spring and a valve. The gas flows into chamber and then to utilities. Outlet pressure can be adjusted by means of ring nut . Increases in inlet pressure due to pipeline failure, regulator shut the flow. Over 350 mbar of inlet pressure, regulator close and waits until to inlet pressure normalize. After inlet pressure decreasing to lower than 350 mbar, regulator starts to operate automatically.
